ELECTRA-KOOL™ MODEL 1400 CENTRIFUGAL FAN
An Electra-Kool™ centrifugal fan is the perfect solution for cooling & ventilating your electrical cabinet, DC motor, or other industrial area while keeping fine dust and dirt out. Prevent internal components and electrical enclosures from malfunctioning due to excessive heat or dust. Electra-Kool™ is a fraction of the price of an air conditioner and or compressed air device, saving you both operating and maintenance costs for years.
ELECTRA-KOOL™ 1400 CFM CENTRIFUGAL FAN FEATURES:
- 1400-1425 CFM of air flow.
- Recommended capacity: 650 cubic foot enclosure OR 250 HP DC motor
- 25.5” height, 14.5” deep, 16” wide
- Rugged cast aluminum housing
- Heavy-Duty Steel Impeller
- 9” square flange (rounded corners, 6.5” hole to hole) that mounts easily to the side or top of any enclosure
- Long lasting filter life due to huge surface area… 45 SQ FT!
- Simple assembly: Filters require just one wingnut – great for quick cleaning
- Finger-guards installed on both the inlet and outlet for your safety
- One year manufacturing warranty – just in case.
MODEL 1400 PART NUMBERS & SPECS
| 3 Phase Part # | FILTER | Height | Width | Depth | Accessories |
|---|---|---|---|---|---|
10831 |
Pleated Paper (fine) |
25.5" |
16" |
14.5" |
Prefilter Wrap, |
10032 |
Metal Mesh (coarse) |
25.5" |
16" |
14.5" |
Filter Mounting Hardware Only |
10810 |
NONE |
18" |
16" |
14.5" |
Filter Mounting Hardware Only |
MODEL 1400 MOTOR SPECIFICATIONS
Three Phase Only
1 HP, 1750 RPM, 56C Frame
208-230/460V, 60Hz TENV
Amps: 3.1 @ 208V, 3.0 @ 230V, 1.5 @ 460V
UR & CSA Listed
This Rugged 1400 CFM Blower is STOCKED for SAME DAY SHIPPING.
MODEL 1400 FILTER SPECIFICATIONS

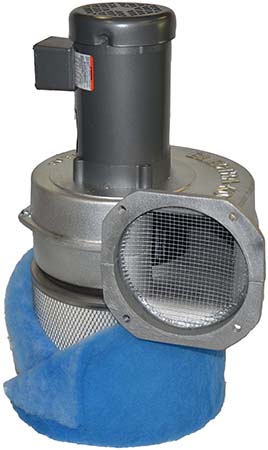

Pleated Paper Filter (FINE filtration, shown on the left in the picture above)
Rated for 99.9% efficiency @ 0.5 microns nominal and 99.97% @ 1 micron nominal
Moisture & oil resistant for consistent performance in all climates
Filters out dust too small to see with the naked eye
PREFILTER WRAPS are provided along with Blowers with Pleated Paper or HEPA filters
½” thick, non-woven polyester to pick up larger particles and extend the life of the main filter
Metal Mesh filter (coarse filtration, shown in the picture at right above)
Rated 60% @ AC Fine Dust
Four layers of corrugated aluminum mesh
Long-lasting, corrosion resistant protection against coarse particulates
MODEL 1400 PARTS & SPARE FILTERS
| Part # | Description (sometimes seen along with P/N) | TYPE | DETAILS |
|---|---|---|---|
10822 |
1400-PL |
Pleated Paper Filter (Fine Filtration) |
9.75" height x 12" OD |
10821 |
1400-MM |
Metal Mesh Filter (coarse filtration) |
9.75" height x 12" OD |
10823 |
1400-PFB |
Prefilter Wrap |
1/2" Woven Polyester, extends life of main filter |
10180 |
1400-PPKIT |
Pleated Paper FilterKIT™ |
Includes PP Filter, Filter End Cap, Prefilter & mounting hardware |
10185 |
1400-MMKIT |
Metal Mesh FilterKIT™ |
Includes MM Filter & mounting hardware |
12807 |
1400-IMPKIT |
Impeller Replacement Kit |
Includes new impeller (squirrel cage), fingerguard and sealant |
